Corner Cantilever Mount for 32" - 55" Flat Panel Displays

Corner Cantilever Mount for 32" - 55" Flat Panel Displays

Corner Cantilever Mount for 32" - 55" Flat Panel Displays

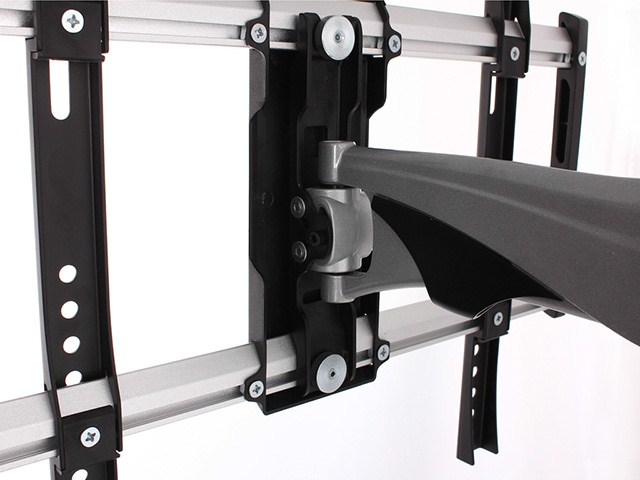

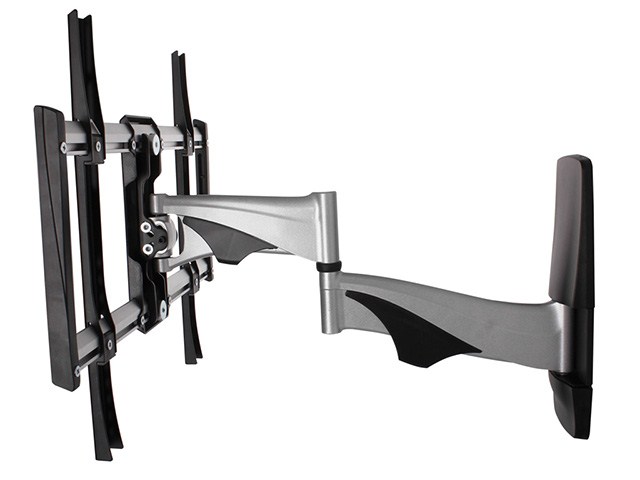

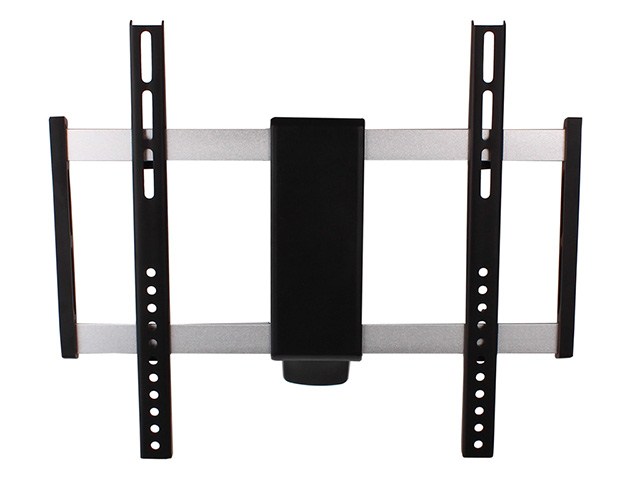

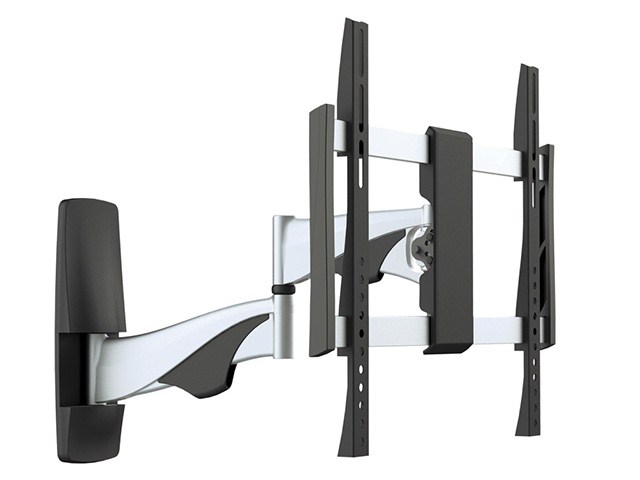

Click to enlarge image(s)
Sometimes mounting your flat panel HDTV in the corner is the best way to accommodate everyone whose watching TV together. For example, if the seating arrangement is set up such that many people can be sitting around the room at any given time watching television, mounting your flat panel TV in the corner would have the screen facing out at a 45-degree angle between two walls, allow viewers to see it clearly from all sides of the room.

Our LGLI-M-10467 is a competitively priced single-arm cantilever mount that is ideal for mounting 32" to 55" flat panel displays that weigh under 70 pounds inside corners. This elegantly designed full motion mounting bracket can extend your TV 20.3 inches from the wall, swivel it 180 degrees and tilt it 15 degrees. Constructed mostly of solid steel and aluminum, it boasts a super strong slim body and a single-stud mounting plate, which make it the easiest and best low-profile solution for mounting flat screen displays inside corners or where open wall space is limited. This is perfect for someone looking for a cool full-motion single-arm corner mount that's safe, dependable and does not cost a lot of money like many others on the market.

The LGLI-M-10467 Corner Cantilever Mount package includes:
  • 1 tilting and swiveling extension arm assemply with single-stud mounting plate
  • 2 TV holding brackets
  • 1 bag of assorted TV mounting bolts, stud bolts, spacers, washers and cable management clips
  • 1 easy-to-read single-page instruction guide
Here at TVMounts USA we offer the LGLI-M-10467 Corner Cantilever Mount for 32-55 inch flat screen displays for the best discount price possible. Not only that, but we provide top-notch customer service, Free Shipping and a fast, safe and secure checkout process. If you have any questions about our LGLI-M-10467 Corner Cantilever Mount or any other articulating LCD & plasma TV mounting brackets, please contact us and a member of our friendly, knowledgeable staff will gladly assist you. With our 100% customer satisfaction guarantee, courteous staff, and every day cheap discount prices, why buy your full-motion flat panel articulating corner mount anywhere else? Order now and save big while this mount is on sale!

Specifications
* TV Size Range: Most 32 - 55 inch TVs
Maximum TV Weight: 66 lbs
Mounting Pattern Compatibility: 200 x 200 up to 400 x 400
TV Mounting Holes: From 8" to 16" horizontally and vertically
Mounts on studs single-stud
Wall Plate Dimensions: 4.3" x 12.9"
Built in Level No
Tilt Range: +/- 15 degrees (up and down)
Swivel Range: +/- 180 degrees (left and right)
Rotation Range: +/- 3 degrees (clockwise and counterclockwise)
Extension from the wall: 1.8" up to 20.3"
Construction: Steel, aluminum and plastic
Cable Management Yes
UL Certified Yes
Shipping Weight 18 lbs
Features Benefits
Full motion mount, featuring +/ -15 degree tilt, and +/- 180-degree swivel Allows for multiple-angle viewing pleasure.
Quick mounting single-stud design Ideal for corner installations or where wall space is limited.
Ultra slim body Perfect for lighter weight slimmer televisions.
Manufacturer's Warranty: 1 year

Mounting Hole Patterns

You may usually find mounting pattern dimensions on the technical drawing page of your TV owner’s manual. Otherwise you can simply measure from the center of one hole to the center of the next (both horizontally and vertically) on the back of your television. Please remember to measure in millimeters.

VESA Mounting Pattern = Distance horizontally x Distance vertically (measured in millimeters).

Example: VESA 400 x 400
IMPORTANT!
* Supported screen sizes in descriptions are provided as a guide. Not all models of televisions will fall within guidelines.
Please note that the screen sizes listed are only approximations. The VESA pattern used to mount the TV and the weight of the TV are the primary indicators of whether a given TV and mount are compatible. Please check the VESA pattern listed in your product manual to ensure that this mount will work with your television.
