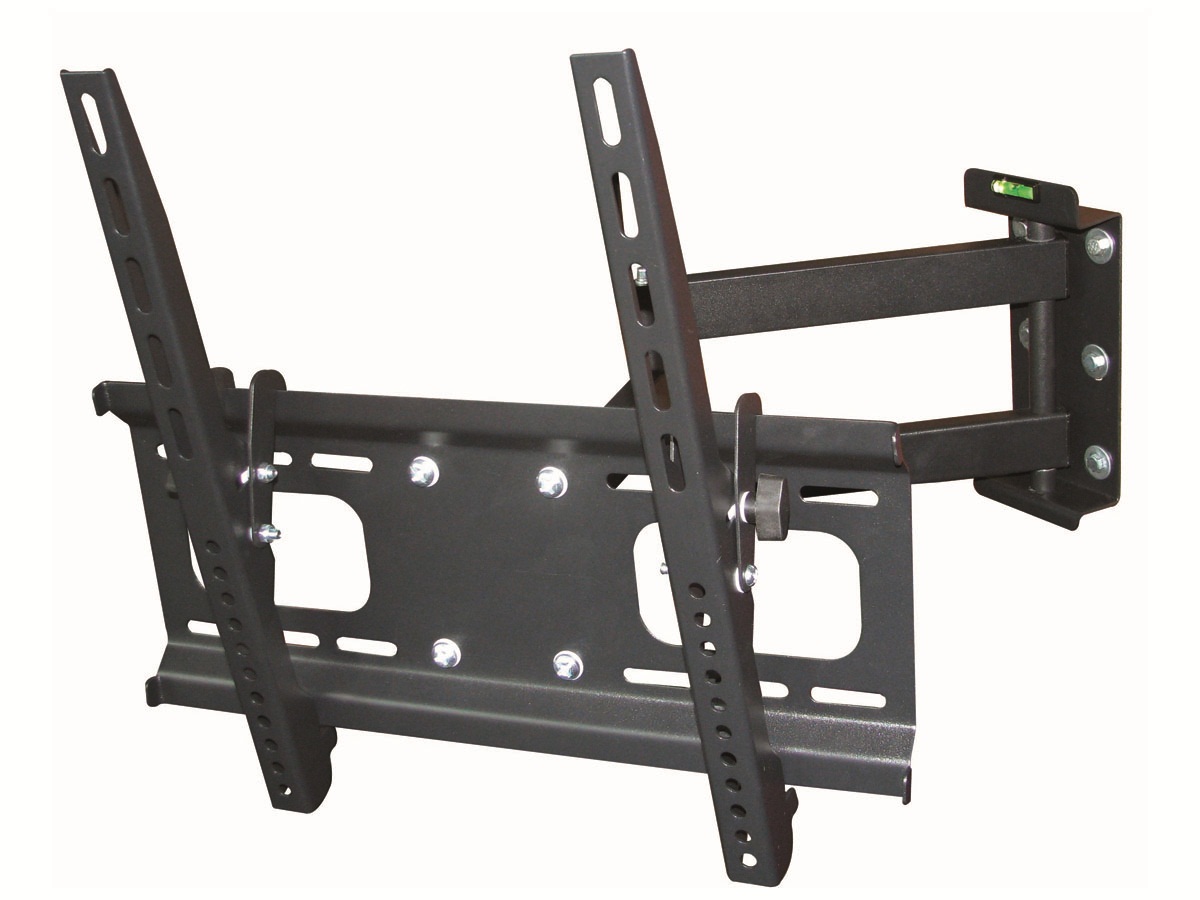

Full-Motion Wall Mount Bracket for 32" - 55" HDTV

Full-Motion Wall Mount Bracket for 32" - 55" HDTV

Full-Motion Wall Mount Bracket for 32" - 55" HDTV
Click to enlarge image(s)
With flat screen HDTVs the most vivid picture is seen when your viewing angle is front and center with the screen vertically and horizontally. If you'd like to watch TV from different seats from time to time it may be difficult to achieve the ideal viewing angle unless you can adjust the TV screen to face in your direction. This full motion wall mounting bracket allows you to do just that by extending, tilting and swiveling so that you can turn your flat screen television in any direction. The LGLI-M-6199 is excellent for corner mounting as well. Make every seat in your room the best seat to watch TV with this easy-to-install full-motion bracket.
Specifications
* TV Size Range: Most 32" to 55"
Maximum TV Weight: 99 pounds
VESA Mounting Pattern Compatibility: 75 x 75 up to 400 x 400
TV Mounting Holes: 2.8" up to 16" apart horizontally and vertically
Mounts on studs: single-stud
Wall Plate Dimensions: 3.9" x 9.6"
Front Plate Dimensions: 18.0" x 8.0"
Tilt Range: 0 to -10 degrees (downward)
Swivel Range: +/-180 degrees (left and right)
Rotation Range: +/-5 degrees (clockwise and counter-clockwise)
Extension from the wall: 3.7" up to 18.7"
Construction: Solid steel
Cable Management? No
Built in Level? Yes
Shipping Weight: 15 lbs.
Features Benefits
Full motion mount, featuring -10 degree downward tilt, +/-180-degree swivel & +/-5 degrees rotation Allows for multiple viewing angle pleasure.
Quick mounting single-stud design Ideal for corner installations or where wall space is limited.
Solid steel contruction Ensures long lasting durability.
Manufacturer's Warranty: 1 year

Mounting Hole Patterns

You may usually find mounting pattern dimensions on the technical drawing page of your TV owner’s manual. Otherwise you can simply measure from the center of one hole to the center of the next (both horizontally and vertically) on the back of your television. Please remember to measure in millimeters.

VESA Mounting Pattern = Distance horizontally x Distance vertically (measured in millimeters).

Example: VESA 400 x 400
IMPORTANT!
* Supported screen sizes in descriptions are provided as a guide. Not all models of televisions will fall within guidelines.
Please note that the screen sizes listed are only approximations. The VESA pattern used to mount the TV and the weight of the TV are the primary indicators of whether a given TV and mount are compatible. Please check the VESA pattern listed in your product manual to ensure that this mount will work with your television.
