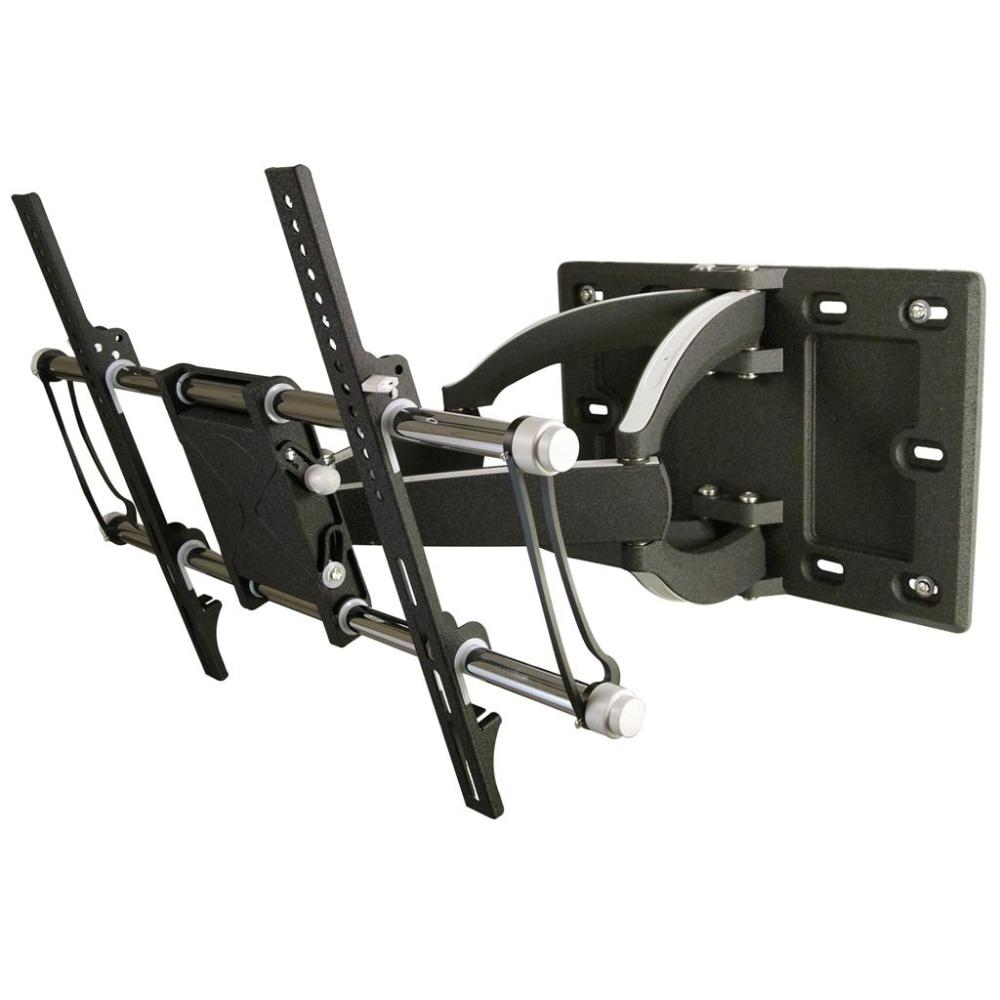

COTYTECH MW-5D1VB Full Swing Wall Mount for 42" - 71" TVs

COTYTECH MW-5D1VB Full Swing Wall Mount for 42" - 71" TVs

COTYTECH MW-5D1VB Full Swing Wall Mount for 42" - 71" TVs
Click to enlarge image(s)

The LGLI-MW-5D1VB Full Swing Wall Mount for 42" - 71" TVs is COTYTECH's latest breakthrough in flat panel mount design.  This rugged cantilever TV wall mount boasts a lightweight die-cast aluminum construction that's durable and fashionable at the same time.  It is a completely full-motion mount built especially for large size TVs and has a weight capacity of 200 lbs. (90.9kgs).  It features a +5 to -15-degree tilt, 180-degree swivel, 23.1-inch full extension from the wall & a -3 to +3-degree roll.  The LGLI-MW-6D1VB Full Swing Mount is professionally engineered for durability and style, easy installation, and amazing functionality.  All Cotytech brand mounts come with a five (5) year warranty.

Please Note:  This TV wall mount is specifically designed for TVs with VESA mounting patterns up to 600 x 400.  For TVs with larger mounting patterns up to 800 x 400, you should choose LGLI-MW-6D1VB instead.
Specifications
* TV Size Range: 42" - 71"
Maximum TV Weight: 200 lbs. (90.9 kgs.)
Mounting Pattern: Universal and VESA compliant: 100 x 100 to 600 x 400
Mounts on Studs: double-stud
Wall Plate Dimensions: 19.7" wide by 12.8" high
Tilt +5 (upward) to -15 degrees (downward)
Swivel: Max 180 degrees left & right
Roll: -3 to +3 degrees
Extension from the wall: 3.4" up to 23.1"
Material: Die-cast Aluminum
Shipping Weight: 30 lbs.
Features Benefits
Works with most flat panel TVs Including plasma, LCD and LED TVs.
Compatible with large mounting patterns Works for large TVs that are hard to find a mount for. (Example: Most of Sharp 65"+ TVs.)
Full-motion design, featuring tilt, pan or swivel Allows for multiple-angle viewing pleasure.
Lightweight quick-mounting design Allows for an easy installation.
Lock-in place feature Prevents TV from unlatching to ensure a secure installation.
Quick release feature Allows for easy removal of TV from horizontal bars if you need to take off TV often.
Die-cast Aluminum construction Provides maximum support in a lightweight mount.
Warranty: 5 years

Mounting Hole Patterns

You may usually find mounting pattern dimensions on the technical drawing page of your TV owner’s manual. Otherwise you can simply measure from the center of one hole to the center of the next (both horizontally and vertically) on the back of your television. Please remember to measure in millimeters.

VESA Mounting Pattern = Distance horizontally x Distance vertically (measured in millimeters).

Example: VESA 400 x 400
IMPORTANT!
* Supported screen sizes in descriptions are provided as a guide. Not all models of televisions will fall within guidelines.
Please note that the screen sizes listed are only approximations. The VESA pattern used to mount the TV and the weight of the TV are the primary indicators of whether a given TV and mount are compatible. Please check the VESA pattern listed in your product manual to ensure that this mount will work with your television.
