Full-Motion Height Adjustable Cantilever Mount for 23" - 42" TVs

Full-Motion Height Adjustable Cantilever Mount for 23" - 42" TVs

Full-Motion Height Adjustable Cantilever Mount for 23" - 42" TVs
Click to enlarge image(s)

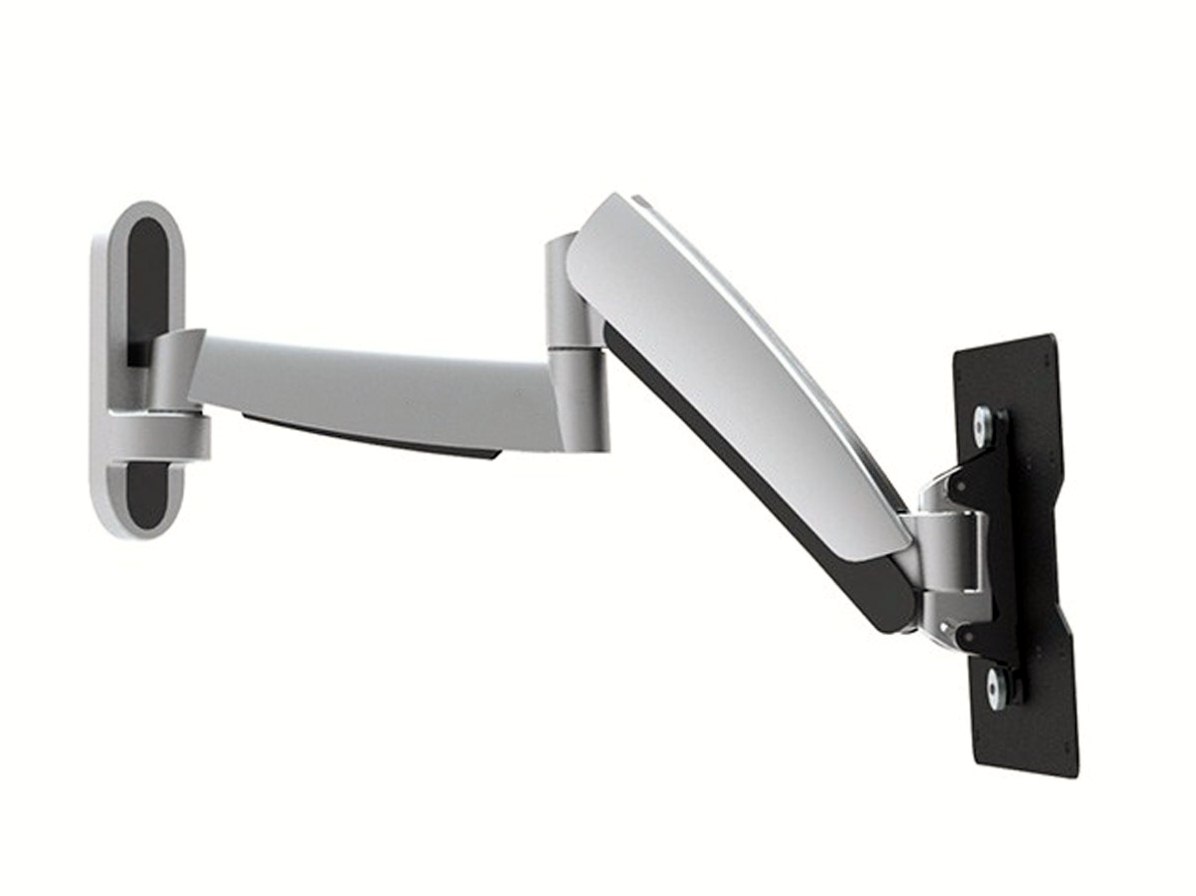

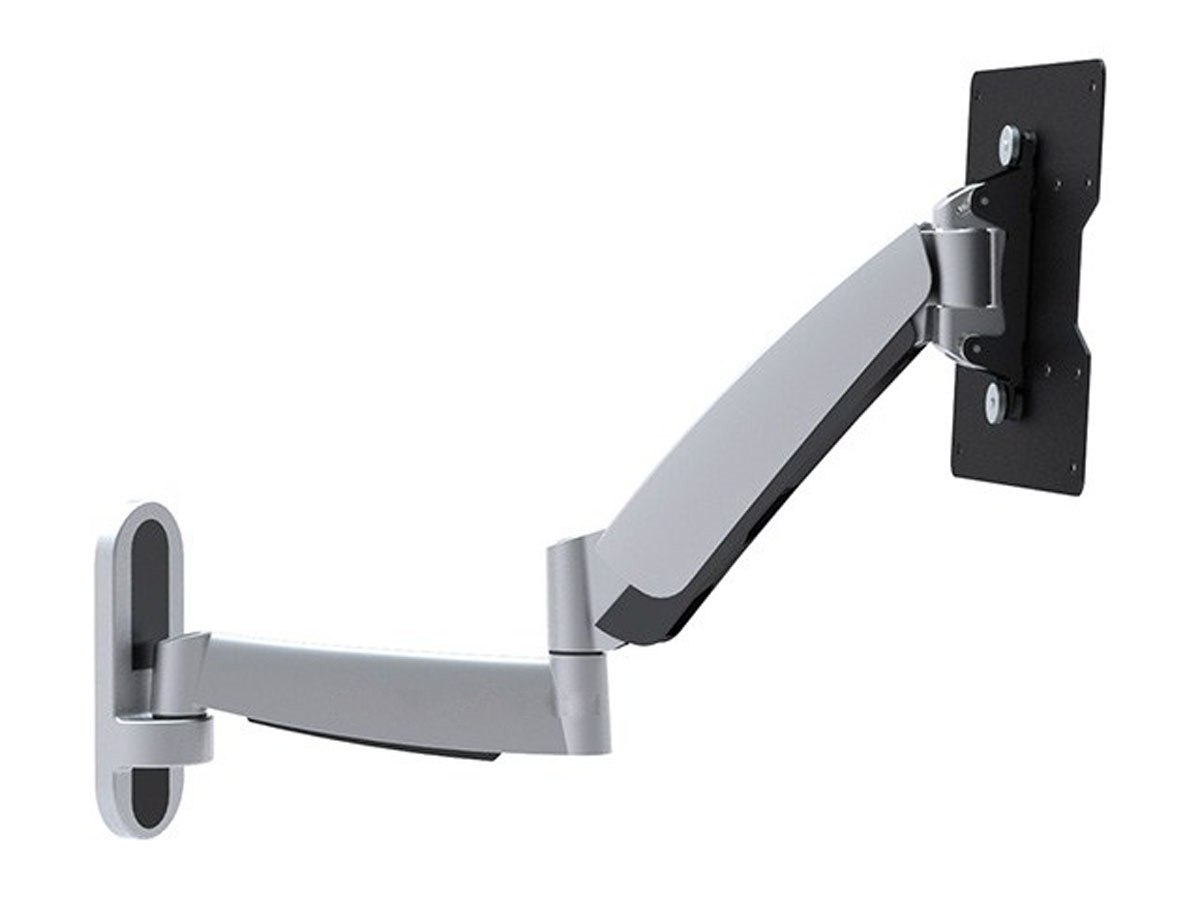

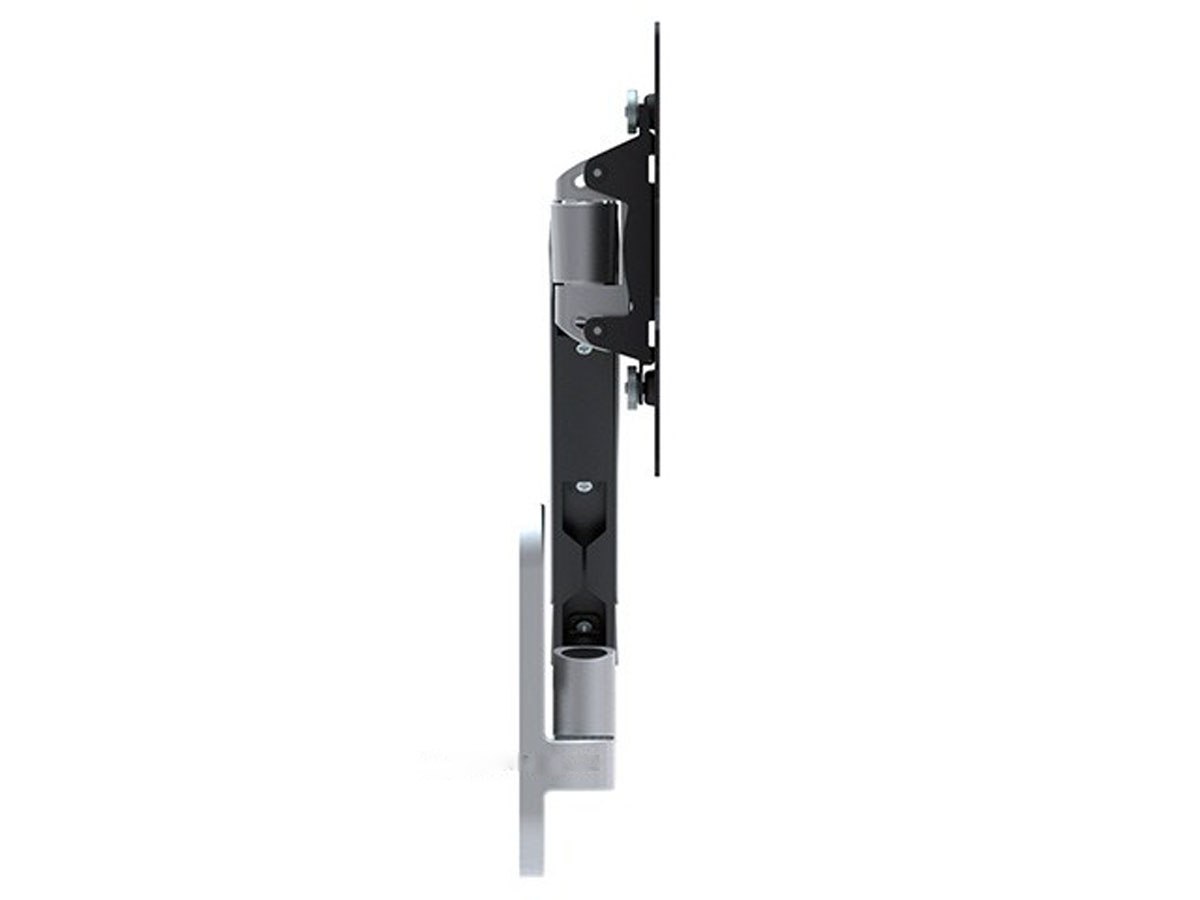

This rugged cantilever wall mount allows you to adjust your flat screen HDTV in four different ways -- extending from the wall, tilting up and down, swiveling left & right and raising or lowering the height. Equipped with an adjustable counterbalance weight in the extension arm, this mount can be height adjusted up to 13 inches up or down from its center position with nothing more than a gentle push. When the counterbalance weight is adjusted properly, the arm stays in place without creeping upward or downward. This mounting bracket is designed to fit most TVs 23 to 42 inches with a maximum weight of 44 pounds. Ideal for mounting in corners or where wall space is limited.
Specifications
* TV size range: Most 23 to 42 inches
Maximum TV Weight: 44 pounds
VESA Mounting compatibility: 100 x 100 up to 200 x 200
TV mounting holes: From 4" to 8" apart horizontally and vertically
Mounting on studs: Single stud
Wall plate dimensions: 2.7" x 7.5"
Built in level? No
Tilt Range: +/-15 degrees (up & down)
Swivel range: +/-180 degrees (left & right)
Rotation range: +/-3 degrees (clockwise & counterclockwise)
Extension from the wall: 2.2" to 22.8"
Height adjustment: 13 inches
Construction: Steel and Plastic
UL Certified? No
Shipping Weight: 13 lbs.
Features Benefits
Full motion mount, featuring +/-15 degrees tilt, 180 degrees swivel, & +/-3 degrees rotation Allows for multiple viewing angle pleasure.
Quick mounting single-stud design Ideal for corner installations or where wall space is limited.

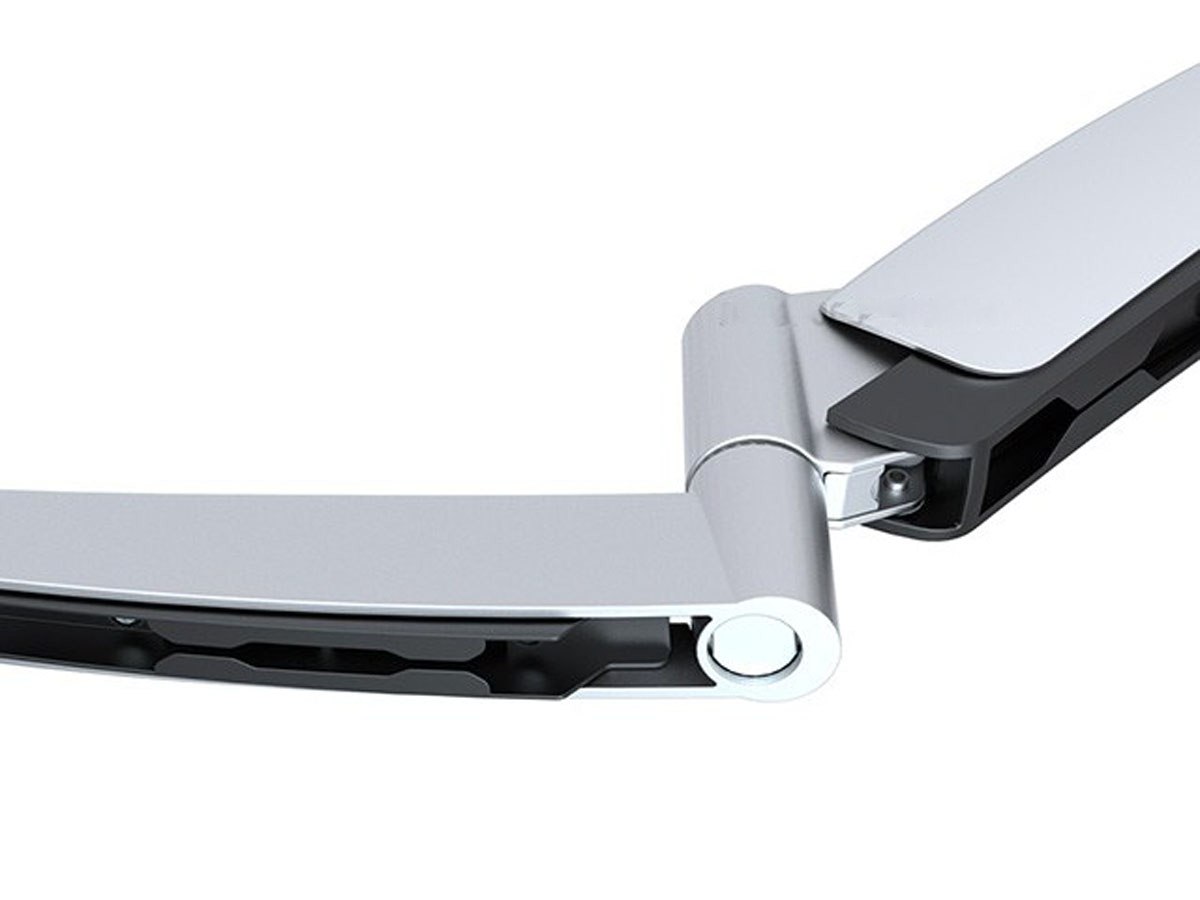

Adjustable counterbalance weight system Allows for height adjustment of 13 inches; extension arm stays in place w/o creeping upwards or downwards.
Ultra-slim body Low-profile look; perfect for lighter-weight, slimmer televisions.
Manufacturer's Warranty: 1 year

Mounting Hole Patterns

You may usually find mounting pattern dimensions on the technical drawing page of your TV owner’s manual. Otherwise you can simply measure from the center of one hole to the center of the next (both horizontally and vertically) on the back of your television. Please remember to measure in millimeters.

VESA Mounting Pattern = Distance horizontally x Distance vertically (measured in millimeters).

Example: VESA 400 x 400
IMPORTANT!
* Supported screen sizes in descriptions are provided as a guide. Not all models of televisions will fall within guidelines.
Please note that the screen sizes listed are only approximations. The VESA pattern used to mount the TV and the weight of the TV are the primary indicators of whether a given TV and mount are compatible. Please check the VESA pattern listed in your product manual to ensure that this mount will work with your television.
