Height Adjustable Full-Motion Cantilever Mount for 26" - 47" TVs

Height Adjustable Full-Motion Cantilever Mount for 26" - 47" TVs

Height Adjustable Full-Motion Cantilever Mount for 26" - 47" TVs
Click to enlarge image(s)

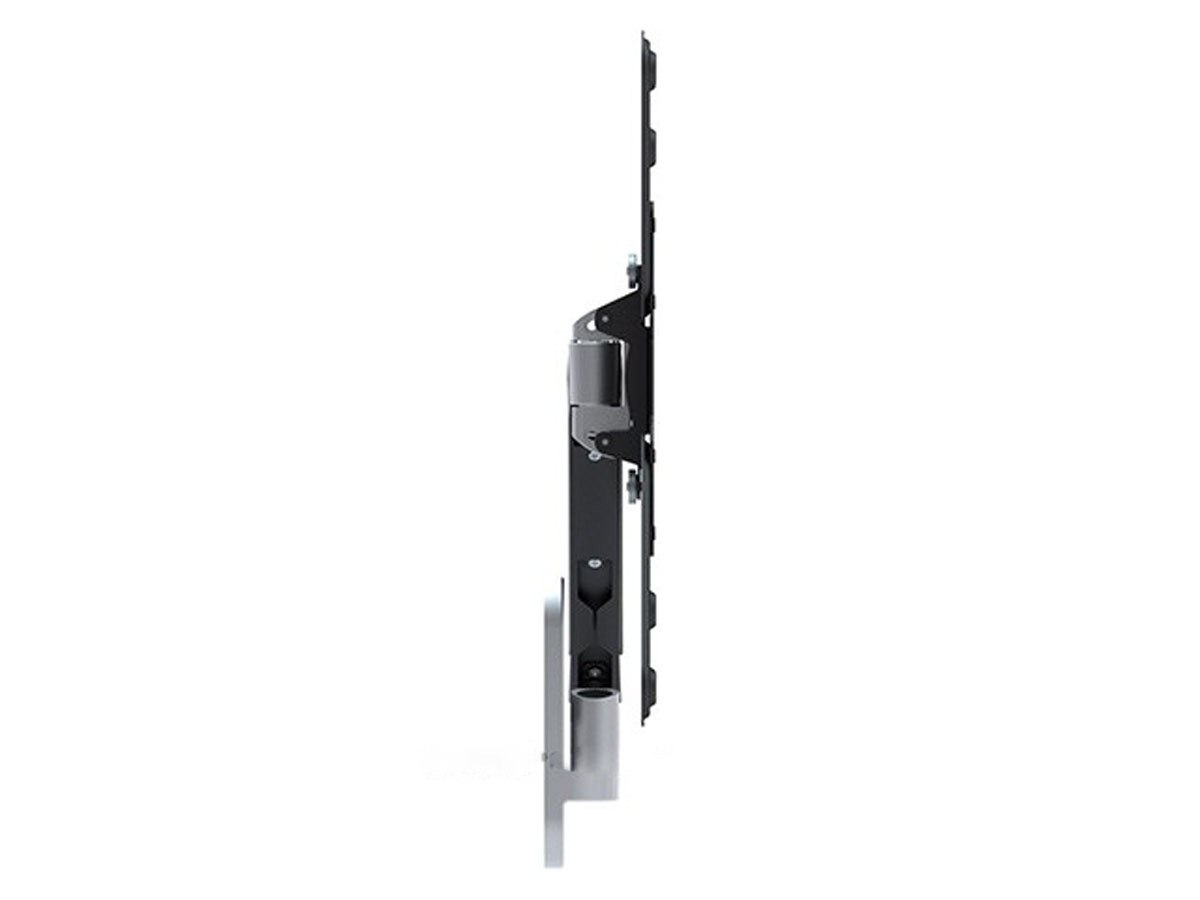

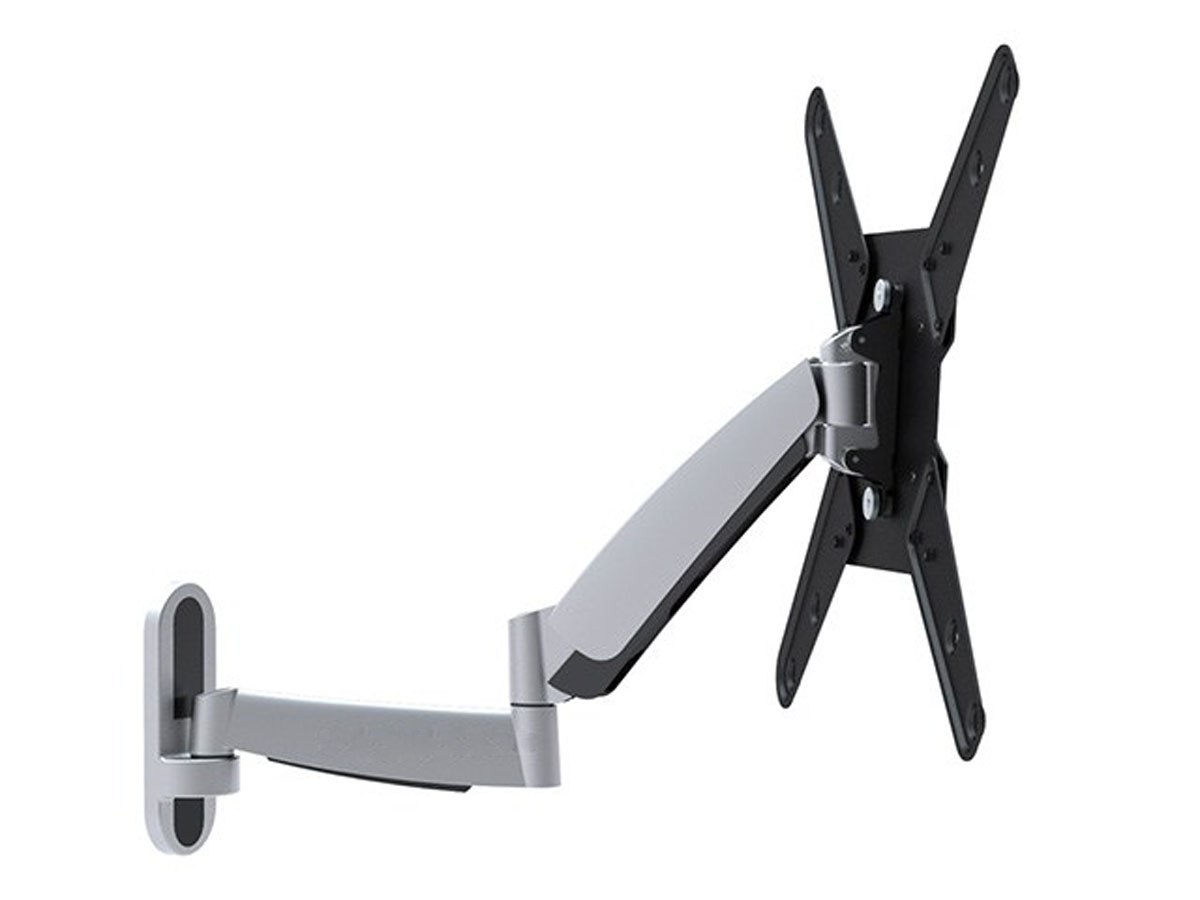

This professionally engineered mounting bracket can extend from the wall, tilt, swivel and adjust the height of a 26 to 47-inch flat screen television while attached securely to a single wall stud. It has a counterbalance weight in the extension arm, allowing you to height adjust your TV up to 13 inches up or down from it's center position. The arm stays in place without creeping upward or downward when the counterbalance weight is adjusted properly. Due to its versatility and smooth multi-dimensional adjustment, the LGLI-M-9745 full-motion cantilever bracket allows you to achieve a front and center viewing angle and see the absolute best quality picture on your LED or LCD flat screen display from any seat in your room.
Specifications
* TV Size Range: Most 26" to 47"
Maximum TV Weight: 44 pounds
VESA Mounting Pattern Compatibility: 100 x 100 up to 400 x 400
TV Mounting Holes: 4" to 8" apart horizontally and vertically
Mounts on studs: single-stud
Wall Plate Dimensions: 2.7" x 7.5"
Built in Level? No
Tilt Range: +/-15 degrees (up and down)
Swivel Range: +/-180 degrees (left and right)
Rotation Range: +/-3 degrees (clockwise and counterclockwise)
Max Height Adjustment: 13 inches
Extension from the wall: 2.2" up to 22.8"
Construction: Steel and plastic
Cable Management? Yes
Shipping Weight: 15 lbs.
Features Benefits
Full motion mount, featuring +/-15 degrees tilt, 180 degrees swivel & +/-3 degrees rotation Allows for multiple-angle viewing pleasure.
Quick mounting single-stud design Ideal for corner installations or where wall space is limited.

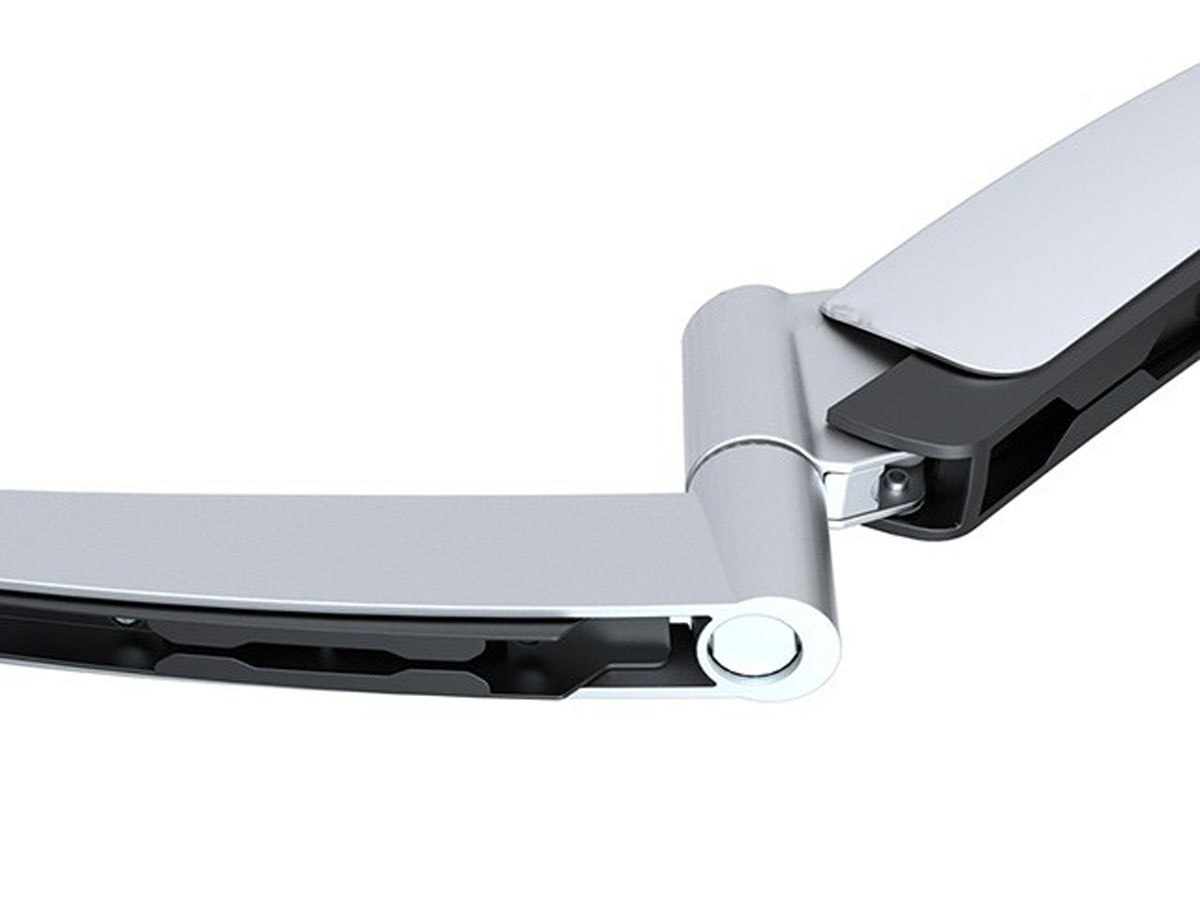

Adjustable counterbalance weight system Allows for height adjustment of 13 inches; extension arm stays in place w/o creeping upwards or downwards.
Ultra-slim body Low-profile look; perfect for lighter-weight, slimmer televisions
Manufacturer's warranty: 1 year

Mounting Hole Patterns

You may usually find mounting pattern dimensions on the technical drawing page of your TV owner’s manual. Otherwise you can simply measure from the center of one hole to the center of the next (both horizontally and vertically) on the back of your television. Please remember to measure in millimeters.

VESA Mounting Pattern = Distance horizontally x Distance vertically (measured in millimeters).

Example: VESA 400 x 400
IMPORTANT!
* Supported screen sizes in descriptions are provided as a guide. Not all models of televisions will fall within guidelines.
Please note that the screen sizes listed are only approximations. The VESA pattern used to mount the TV and the weight of the TV are the primary indicators of whether a given TV and mount are compatible. Please check the VESA pattern listed in your product manual to ensure that this mount will work with your television.
