Pro-grade Cantilever Mount with Height Adjustment for 40 - 60" TVs

Pro-grade Cantilever Mount with Height Adjustment for 40 - 60" TVs

Pro-grade Cantilever Mount with Height Adjustment for 40 - 60" TVs
Click to enlarge image(s)

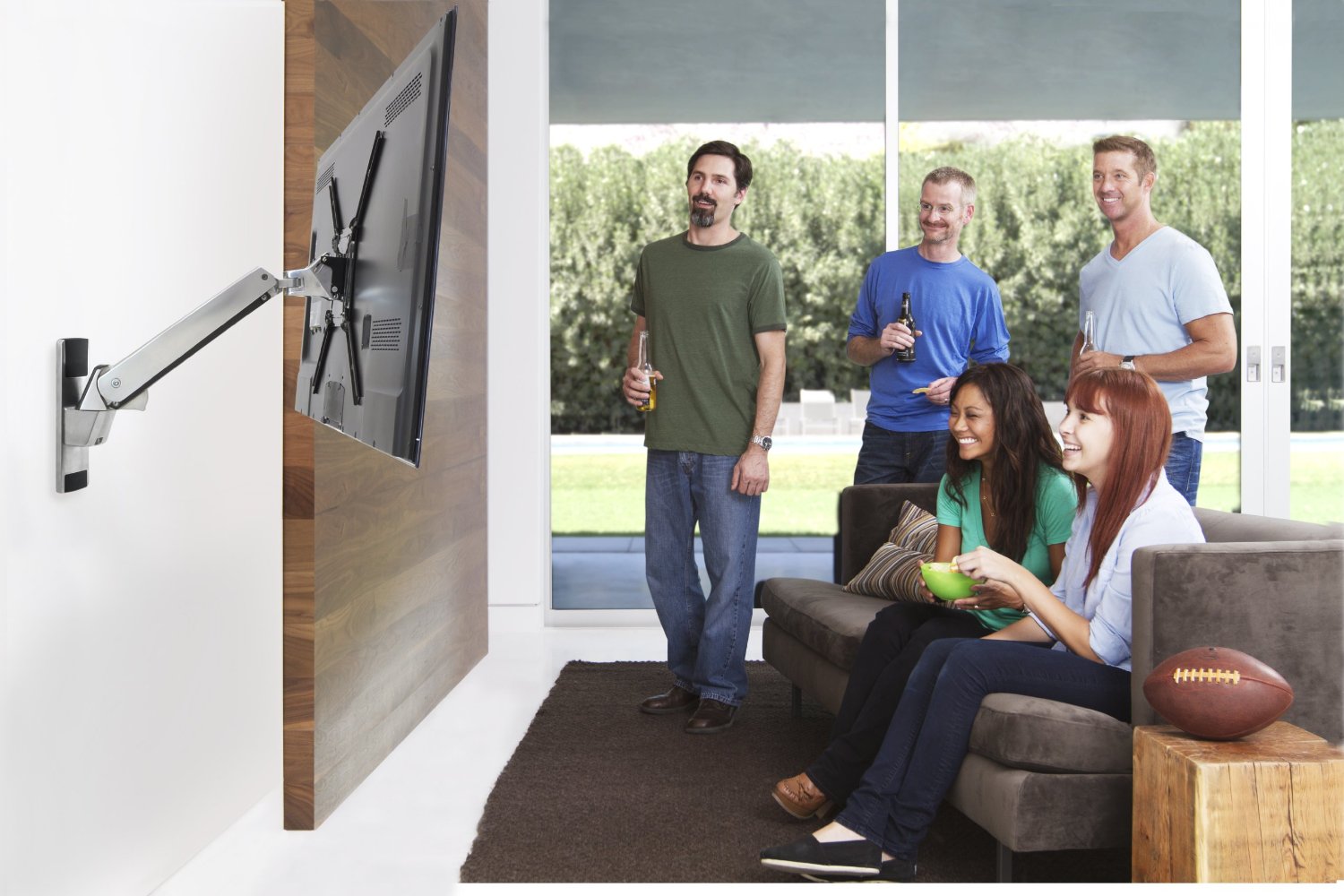

The LGLI-OMP-70, manufactured by OmniMount, is a premium interactive flat panel wall mount. It is ideal for mounting most 40" to 60" lightweight TVs and monitors in corners or where wall space is limited. Allows for smooth viewing angle adjustments in four dimensions -- extending from the wall, tilting up and down, swiveling left and right, and raising or lowering the height. This mount is UL certified, which means it has undergone rigorous testing for safety and reliabiltiy.

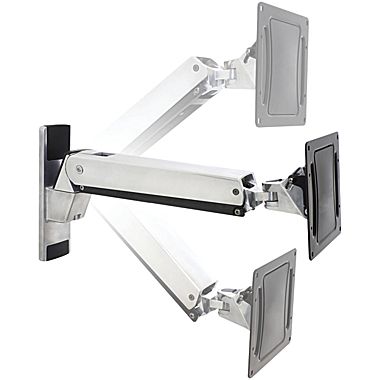

  • This TV mount offers 20" (508 mm) of smooth, continuous vertical movement of the TV/display
  • Patented Constant Force counterbalance weight technology enables light-touch adjustments without knobs or levers
  • Gravity pivot enables tilting capabilities without the need for knobs or levers

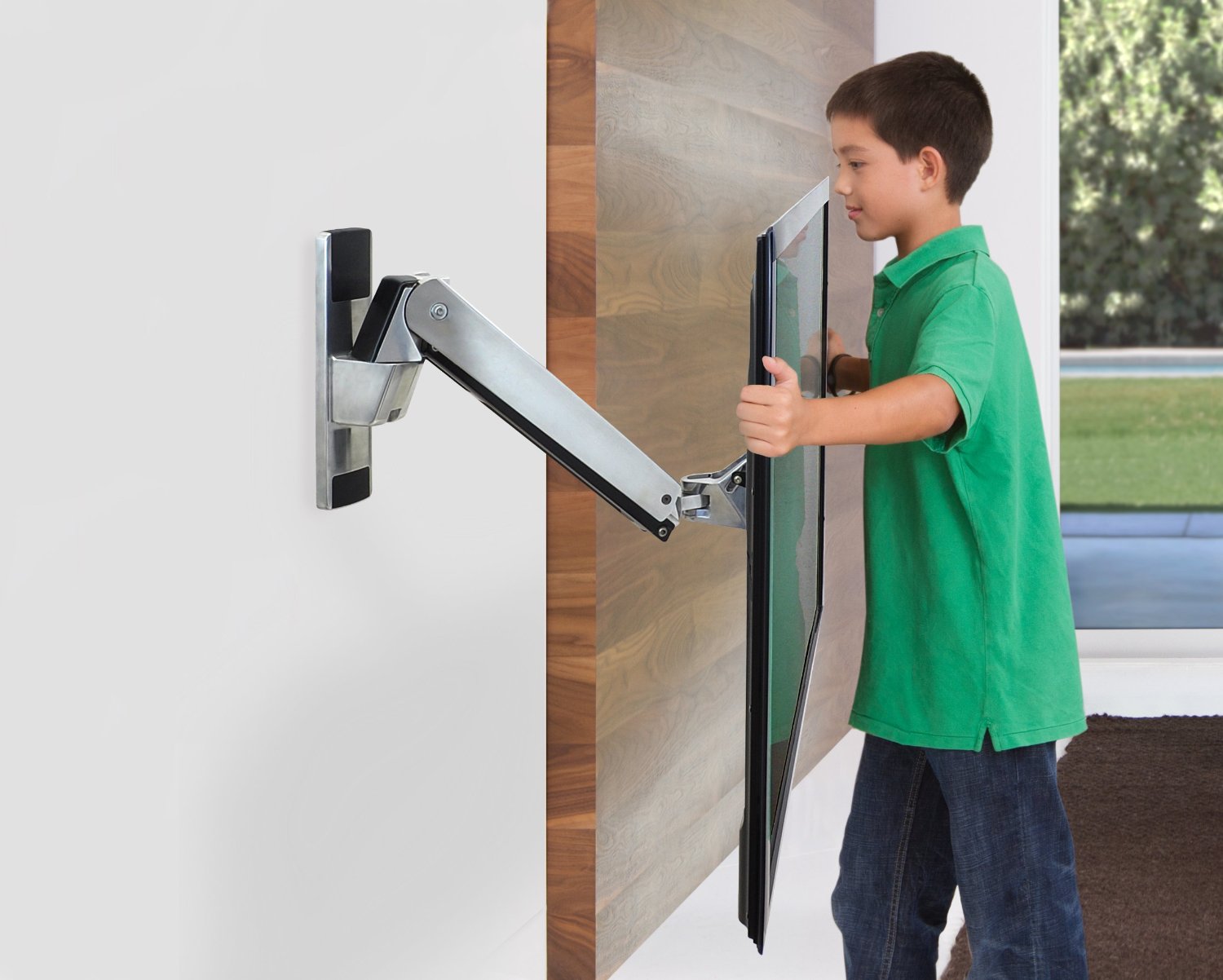

  • Extends 28" (711 mm) from wall when in use and retracts to 6.5" (165 mm) when not in use
  • Improves ergonomic viewing for TVs/displays mounted high on the wall
  • Constructed from polished aluminum and black trim for maximum strength and aesthetics

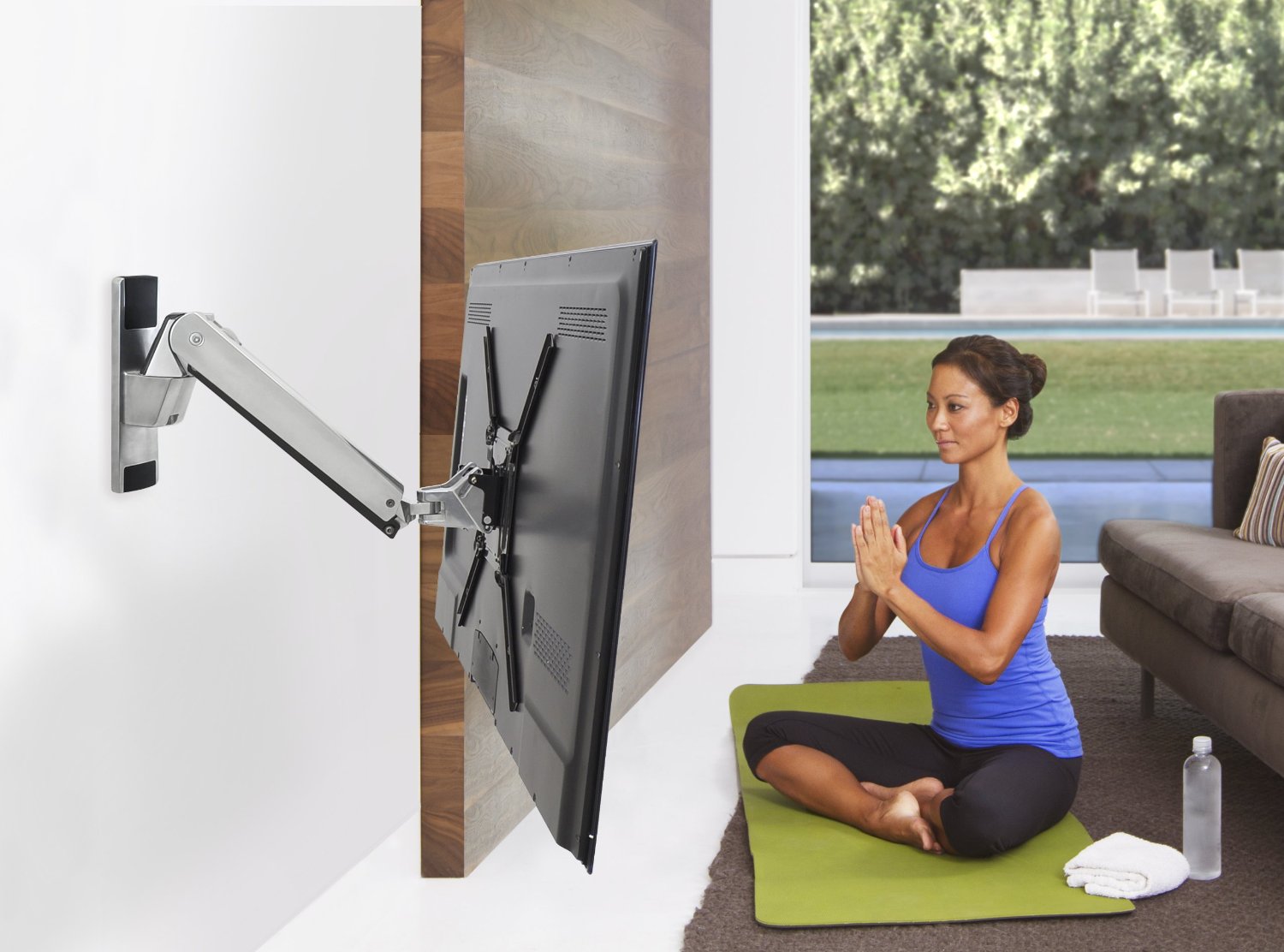

  • Tilt and pan for maximum viewing flexibility
  • +/- 5º of post-installation leveling
  • Cable management clips on the underside of the mount arm route and hide wires
  • Includes complete hardware kit
Specs:

  • Fits most: 40–60" (76–152 cm) TVs/displays
  • Supports: 35–70 lbs (15.9–31.8 kg)
  • Tilt: +15º to -10º
  • Pan: 180º
  • Mounting profile: 6.5" (16.5 cm)
  • Maximum extension: 28" (71 cm)
  • Vertical movement: 20" (508 mm)
  • VESA compliant: 200x100 to 600x400
  • Mounting: Single-stud or solid wall
  • Warranty: 5 years
  • Color: Polished Aluminum with black trim
  • UL Certified


Mounting Hole Patterns

You may usually find mounting pattern dimensions on the technical drawing page of your TV owner’s manual. Otherwise you can simply measure from the center of one hole to the center of the next (both horizontally and vertically) on the back of your television. Please remember to measure in millimeters.

VESA Mounting Pattern = Distance horizontally x Distance vertically (measured in millimeters).

Example: VESA 400 x 400
IMPORTANT!
* Supported screen sizes in descriptions are provided as a guide. Not all models of televisions will fall within guidelines.
Please note that the screen sizes listed are only approximations. The VESA pattern used to mount the TV and the weight of the TV are the primary indicators of whether a given TV and mount are compatible. Please check the VESA pattern listed in your product manual to ensure that this mount will work with your television.
