COTYTECH Swivel Corner Wall Mount for 22" - 37" TVs

COTYTECH Swivel Corner Wall Mount for 22" - 37" TVs

COTYTECH Swivel Corner Wall Mount for 22" - 37" TVs
Click to enlarge image(s)

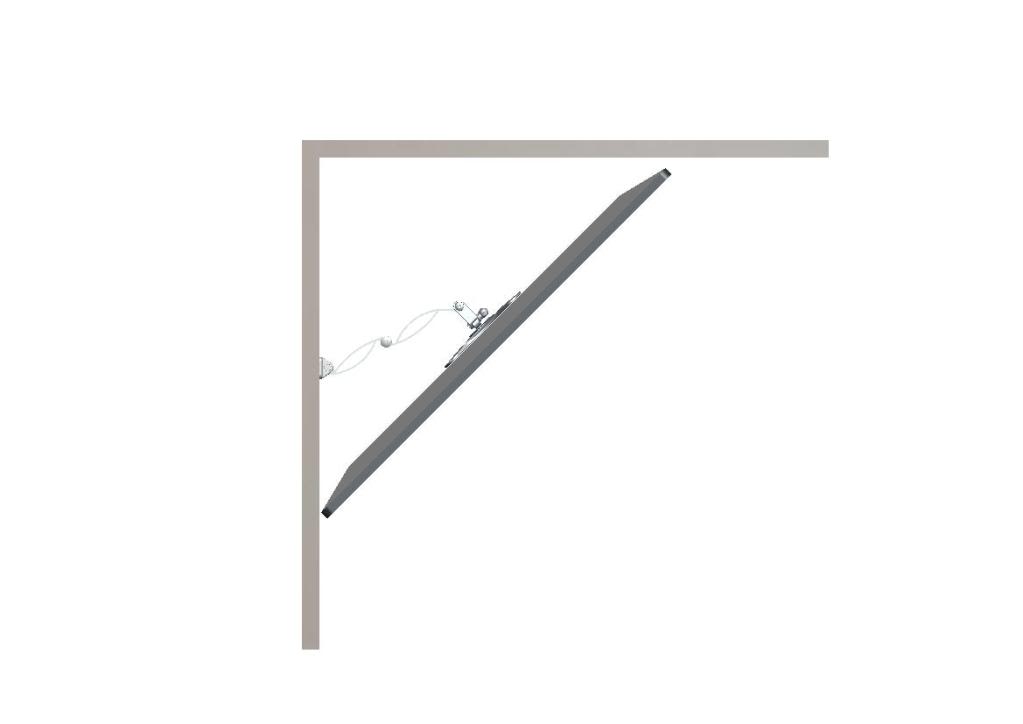

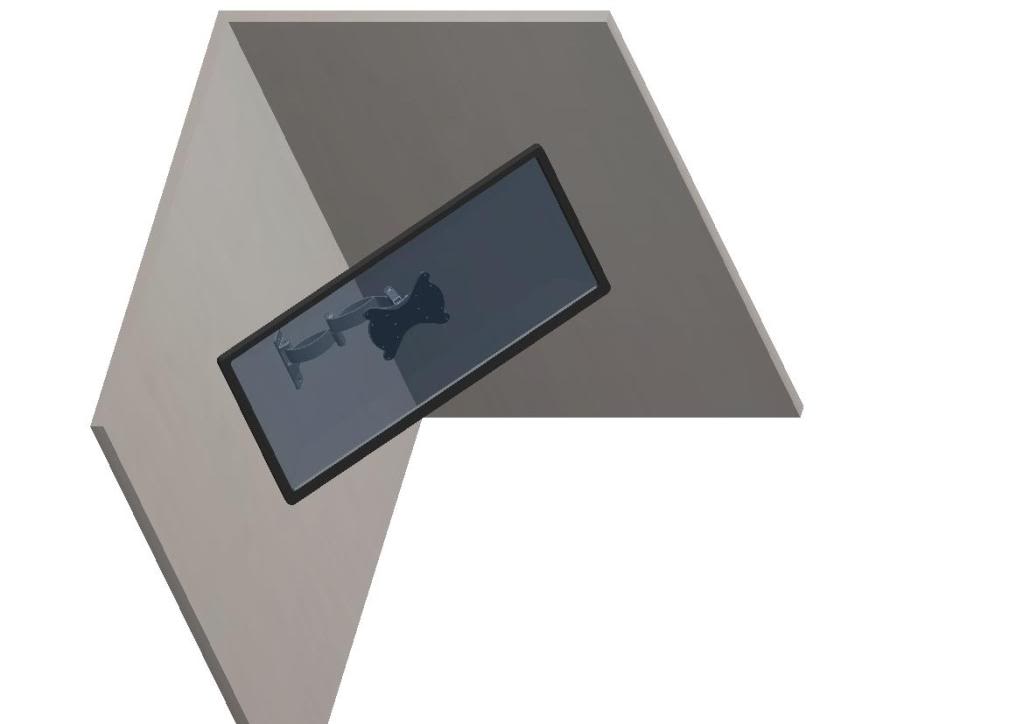

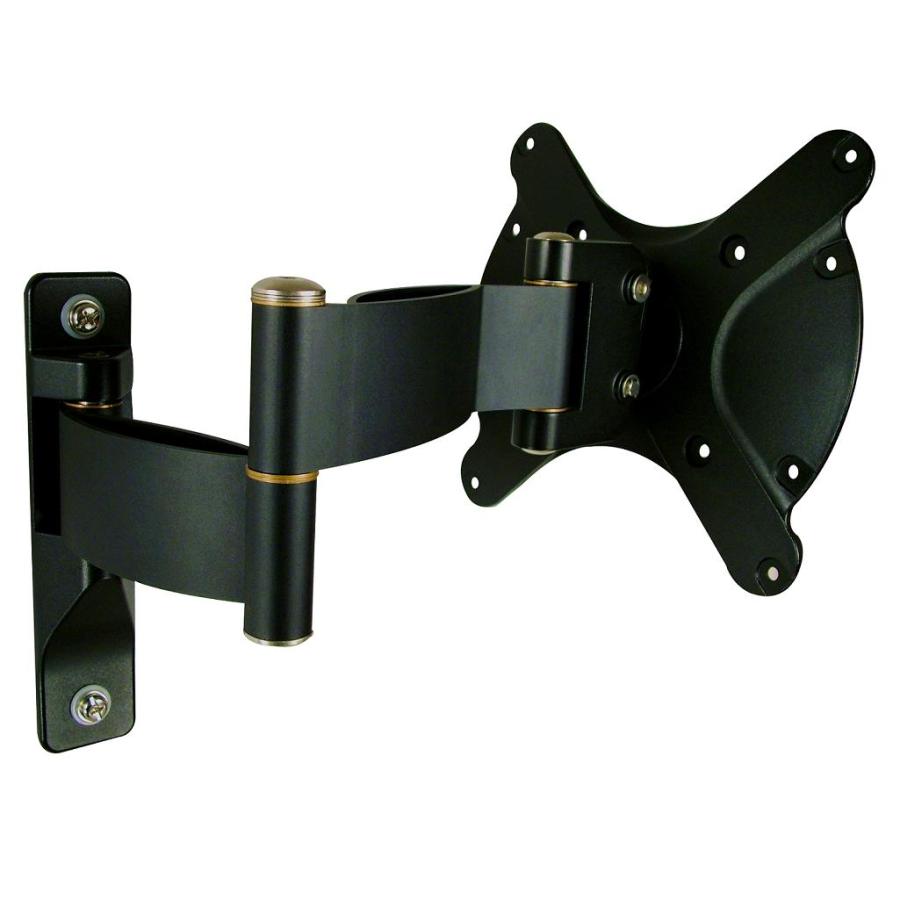

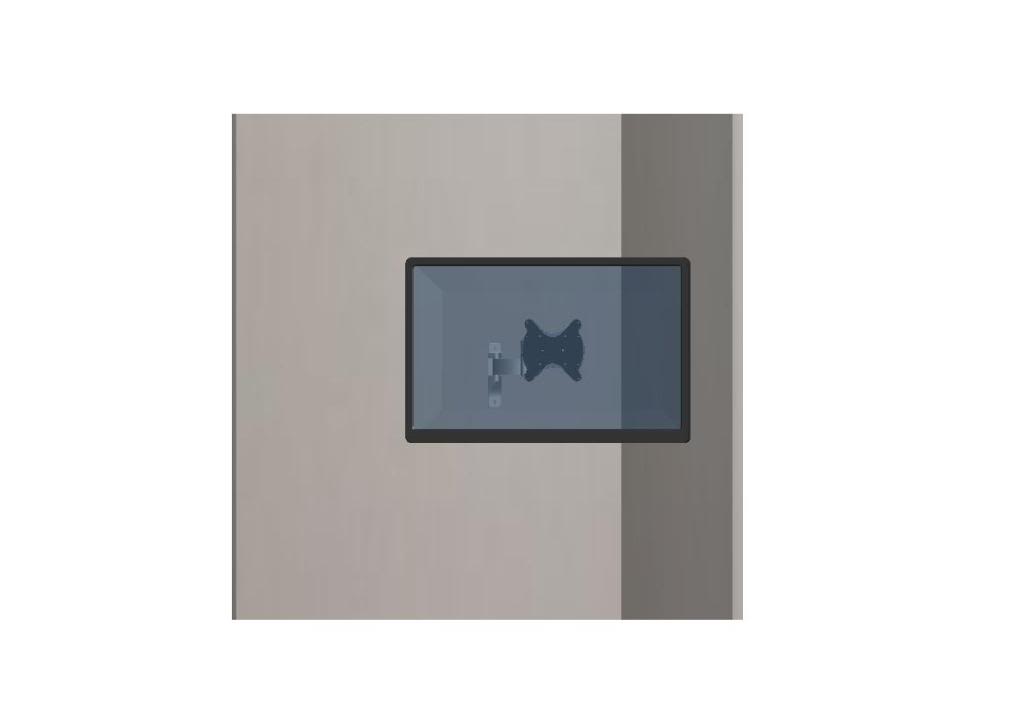

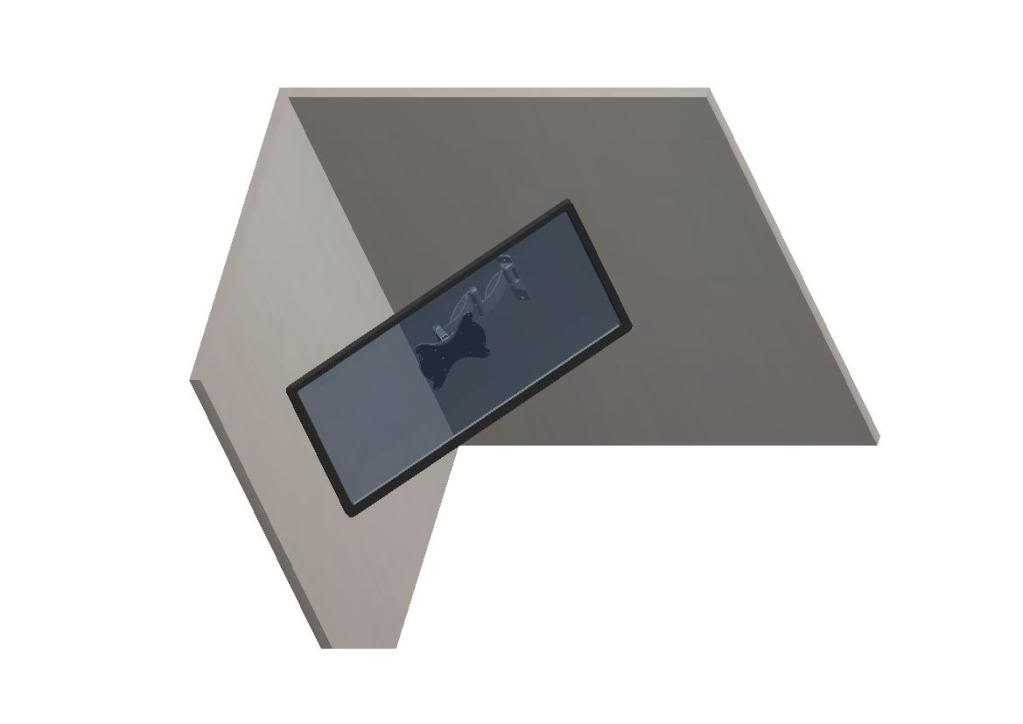

The unique and creative LGLI-MW-3A3B Swivel Corner Wall Mount by COTYTECH has 3 pivot points, giving it full-motion functionality. It works ideally for corner mounting flat panel TVs ranging in sizes from 22 to 37 inches. (It works well for non-corner installations too!). This rugged wall mount boasts a maximum weight capacity of 60 lbs (27.3 kgs.). It also features a +5 to -20-degree tilt, 180-degree swivel & a 16.4-inch full extension from the wall. This COTYTECH wall mount has been professionally engineered with the end user in mind, offering easy installation along with superior strength and functionality. All Cotytech brand mounts come with a five (5) year warranty.

Please Note: This mount was built to fit TVs with VESA patterns no larger than 200 x 200. You should order this wall mount with the LGLI-AK3 Mounting Holes Adapter if the back holes of your TV measure greater than 200 x 200. The adapter set will allow your Swivel Corner Wall Mount to fit mounting patterns of the following: 400 x 400, 400 x 300, 400 x 200, and 300 x 300.
Specifications
* TV Size Range: 22" - 37"
Maximum TV Weight: 60 lbs./27.3 kgs.
Mounting Pattern: Universal and VESA compliant: 100 x 100 to 200 x 200 (without adaptor) | Up to 400 x 400 (if ordered with adaptor)
TV Mounting Holes: Up to 8" horizontally & 8" vertically (without adaptor) | Up to 16" horizontally & 16" vertically (with adaptor)
Mounts on Studs: single-stud
Wall Plate Dimensions: 3.2" wide by 16.9" high
Tilt: +5 (upward) to -20 degrees (downward)
Swivel: Max 120 degrees left and right
Maximum Extension from the Wall: 16.4"
Material: Aluminum extrusion material
Shipping Weight 6 lbs.
Features Benefits
Quick mounting single-stud design Ideal for corner installations.
Aluminum extrusion material Light yet sturdy construction
Three swivel points Allows wall mount to be installed at the corner, and be able to swivel it to either wall.
Features tilt, pan and swivel Allows for multiple-angle viewing pleasure.
Package includes bubble level Helps to install mount evenly on wall.
Warranty: 5 years

Mounting Hole Patterns

You may usually find mounting pattern dimensions on the technical drawing page of your TV owner’s manual. Otherwise you can simply measure from the center of one hole to the center of the next (both horizontally and vertically) on the back of your television. Please remember to measure in millimeters.

VESA Mounting Pattern = Distance horizontally x Distance vertically (measured in millimeters).

Example: VESA 400 x 400
IMPORTANT!
* Supported screen sizes in descriptions are provided as a guide. Not all models of televisions will fall within guidelines.
Please note that the screen sizes listed are only approximations. The VESA pattern used to mount the TV and the weight of the TV are the primary indicators of whether a given TV and mount are compatible. Please check the VESA pattern listed in your product manual to ensure that this mount will work with your television.
